Mapping the path to prototyping an adaptable user centered design process

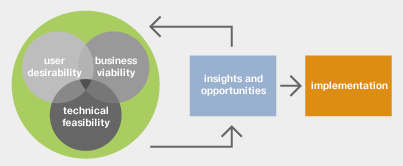

We’ve all seen the classic User Centered Design (UCD) process diagrams, mostly linear, that attempt to communicate the steps yet unable to capture the iterative nature of the activity simply due to the limitations on how many circular arrows one can add without losing clarity. When I first began exploring the process deeply for application in emerging markets, this is the one we naturally used during a brainstorming experience with David Kelley back in April 2006:

But those of you familiar with the application in the practice of user centred design will recognize that this section applies to the design planning phase, prior to the design and development of the first prototype, boxed up here as “implementation”. You’ll also note that “User research” or rather, “Immersion” in the field, is left implicit, although one can say that it is represented by the green circle. Exploring as I was, back then, the intersection of where design met business, I felt this diagram was limited in its ability to communicate what really happened, much less why or how.

[Illustration of the Process of Design from a great height]

Shortly thereafter, in May 2006,  Damien Newman put the now famous “squiggle” up on his blog in response to a contemplative post of mine. Aha! I said, when I read what Damien had to share about his illustration:

So I decided to consider how to frame design activities in all disciplines, to discover which ones were worthy of placing on my map, could be the process one takes to set about producing a designed solution. I think in its most basic and fundamental form, the process of design that one embarks upon, can be seen in three steps/stages/phases (whatever): Abstract, Concept & Design.

At first there is a sort of theoretical, not yet in existence, essence of a thought, state or problem solution. As designers, we set about to bring that abstract state into a concept, something that can be communicated, perhaps visualized, definitely discusses and shaped. The final stage is the design of the concept, into the form, solution or final presentation of the concept.

I’m not sure if you were to have stood at Fort Point in San Francisco at around 1827, and said “We need a bridge to get over there” if that is a fair description of the Abstract, phase – but its about the time a typographer decides to start their first sketches of a typeface that it shifts from being abstract into a concept.

At a firm like IDEO, all design starts with a healthy amount of messing around in the abstract. Human Factors leads their approach to framing a design concept and problem – and they clearly (like others too) excel at bridging any gaps between these three phases, and at including the client, their customers and designers in the process.

This squiggle was in response to this post of mine from August 2005, Design vs Design thinking where I’d first attempted to distinguish between the tangible role of a human centered designer and those who were inspired by the human centered design process for business strategy and planning. But, as experienced practitioners and thinkers on the messy, chaotic, non linear creativity inherent in these activities will recognize immediately, the squiggle is too implicit to help communicate the process with clarity to audiences without exposure to the process, such as your typical client organization or institution. Linear, structured thinkers need to feel confident they understand what you are planning to do and how you’ll go about it before they’ll sign a check.

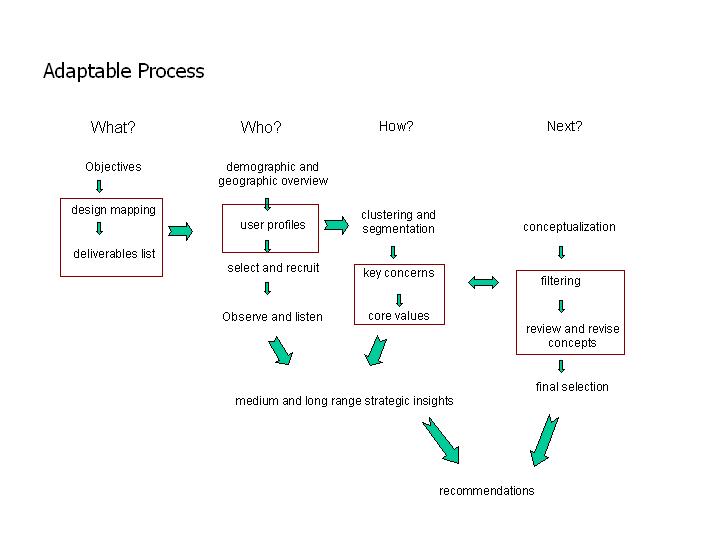

And so, we finally arrive at early 2008, where the first attempt to crudely diagram the evolving process for emerging markets and bottom of the pyramid (BoP) customers as articulated in my previous post from 7th November 2012, was prototyped so:

Quite a few circular arrows are missing from the How? and Next? phases here as it attempted to frame the bullet points from process description into a visual format. Now I hope that with the help of excellent visual thinkers involved in our current project, there is a chance that this process can be greatly improved.
